Specifications
2 KW & 4.5 KW
Model Watts Volts Amps Phase Replacement
Part No.
OH2028 2000 208 9.6 1 HE20208
OH202 2000 240 8.3 1 HE20240
OH204 2000 480 4.2 1 HE20480
OH205 2000 550 3.6 1 HE20550
OH206 2000 600 3.4 1 HE20600

OH4528 4500 208 21.6 1 HE45208
OH452 4500 240 18.8 1 HE45240
OH454 4500 480 9.4 1 HE45480
OH455 4500 550 8.2 1 HE45550
OH456 4500 600 7.5 1 HE45600

Shipping weight ( 11 lbs. for 2KW ) ( 18 lbs. for 4.5KW )

277 Volt and 600 Volt available as special order.

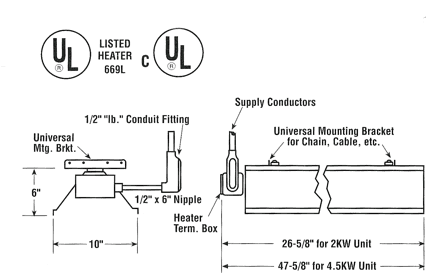

Installation Instructions
  1. Minimum clearance dimensions from ceiling to top of 12" & walls to sides & ends 24".
  2. Combustible material should not be placed in the radiation path.
  3. Wiring is single-end, insulated, nickelplated, stranded copper wire with 6" of wire available for connection in conduit fitting.
  4. 6" long nipple and type "LB" conduit fitting are packed with heater, but not attached.
  5. Spacing from adjacent heaters should be a minimum of 36".
