Specifications
6 & 13.5 KW Overhead Heaters
Specifications
Model Watts Volts Amps Phase Replacement
Part No.
OH628 6000 208 16.7 3 HE20208
OH623 6000 240 14.5 3 HE20240
OH643 6000 480 7.2 3 HE20480
OH653 6000 550 6.3 3 HE20550
OH663 6000 600 5.8 3 HE20600

OH13528 13500 208 37.5 3 HE45208
OH135231 13500 240 32.5 3 HE45240
OH135431 13500 480 16.3 3 HE45480
OH13553 13500 550 14.2 3 HE45550
OH13563 13500 600 13.0 3 HE45600

Shipping weight ( 24 lbs. for 6KW ) ( 55 lbs. for 13.5KW )

277 Volt and 600 Volt available as special order.



Installation Instructions
  1. Minimum clearance dimensions from ceiling to top of heater is 24"; from walls to sides and end of heaters is 36"
  2. Combustible material should not be placed in the radiation path.

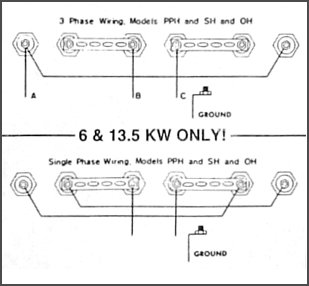

  3. Wiring is single-end, insulated, nickelplated, stranded copper wire with 6" of wire available for connection in conduit fitting.

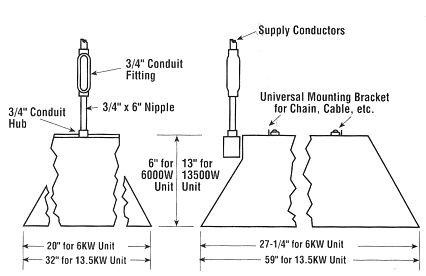

  4. 6" long nipple and type "C" conduit fitting are packed with heater, but not attached.
  5. Spacing from adjacent heaters should be a minimum of 36".
