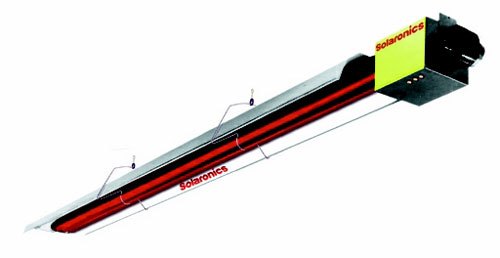

RHG Garage Heater

SunSpan! One of the Best Names in Infrared Heat!
  • Natural Gas or Propane
  • Designed for
    Residential Applications
  • Direct Spark Ignition
  • 100% Safety Shut-Off
  • 120 Volt Power
Instruction Manual


Tube Heaters Heat People and Objects Not the Air!
Low Intensity Heat Passes through the Air to heat the person or object.
 If you have any Questions on this product Please Give us a Call!

Results
  • Still Warm with the Door open!
  • Quick Reclaim of Heat!
  • Only Runs When you are in the room!
  • Can run off thermostat for freeze protection!
  • Quick heat up Time


    It's a simple Way to heat.
      Blow Burning Gas down a 4" OD Pipe to heat the Pipe.
      The Heat is tranfered through the Pipe into Infrared energy!

  • Superior Reflectional Efficiency of 91.7%. 33 of 36 infra-red rays are directed to the floor, not back on the tube.

    Ideal for garages, workshops, hobby areas, entryways, clubhouses, farm buildings, machine shops, and other hard-to-heat areas
    (not for indoor living or sleeping areas).
    >
    New Price Starts @

    $698.00
    Catalog# Gas Type BTU's Overall
    Length
    Wgt. Price $ Add To Cart
    RHG (Straight) Heater
    RHG-4010AN
    40,000 12' 75 $698.00
    RHG-4015AN
    40,000 16 3/4' 90 $814.00
    RHG-4020AN
    40,000 21 3/4' 110 $754.50
    RHG-6020AN
    60,000 21 3/4' 110 $754.50
    RHU ( U-Tube) Heater
    RHU-4015AN
    40,000 13' 90 $959.00
    RHU-4020AN
    40,000 13' 110 $848.00
    RHU-6020AN
    60,000 13' 110 $848.00
    WARRANTY
    Accessories
    Catalog# Description Wgt. Price $ Add To Cart
    132026-4 Wall Mount Thermostat (40-80) 1 lbs $22.00
    0132486 Weather Proof 4X Wall Mount Thermostat (40-80) 4 lbs $60.00
    0002-42-121 Night Setback Wall Mount Thermostat (40-80) 4 lbs $49.00
    0002-42-119 120 Volt Transfomer Relay use with #132026-4(24 volt option)
    and #0002-42-121
    2 lbs $44.00
    0002-10-046 Gas Appliance connector 24 inch (Residential Approved) 1/2 PSI max, 1/2 Gas cock and 1/8 Pressure tap
    (Natural and Propane Gas)
    2 lbs $25.50
    CH-50 Chain Set (50 Feet of chain with 14 S-hooks) 8 lbs $17.50
    131402 Roof Venting Cap 4" ID for single Unit 2 lbs $17.50
    131402 Roof Venting Cap 5" ID for Dual Coupled Units 2 lbs $17.50
    132237 Wall Venting Hood 4" OD for single Unit 10 lbs $76.00
    132238 Wall Venting Hood 5" OD for Dual Coupled Units 10 lbs $78.00


    We've seen your application. Call Us for application Assistance

    (901) 452-4516
