E-Shop : Level and Flow Controls : EchoTREK SE-300 Ultrasonic Level Transmitter

NIVELCO EchoTREK
SE-300 Ultrasonic Level Transmitter

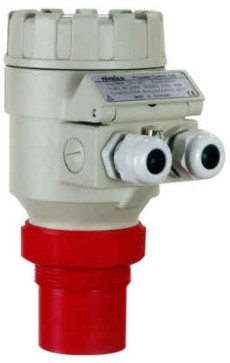

NIVELCO EchoTREK SE-300 Ultrasonic Level Transmitter

Nivelco Ultrasonic Level Transmitter, Compact Ultrasonic, EchoTREK SE-300

Available with 5-year warranty, programming via Bluetooth® / HART® protocol, up to 82' sensing distance, high temperature units up to 212°F.

Product Properties

  • 2- or 4-wire transmitter
  • Non-contact level metering
  • Narrow 5° beam angle
  • Excellent signal processing
  • Temperature compensated
  • 32-point linearization
  • PP, PVDF, PTFE housing and transducers
  • Plug-in display module
  • Plastic, aluminum or stainless steel housing
  • Explosion-proof variants available
  • Level and volume measurement and display
  • Open channel flow measurement
  • Fail-safe indication
  • PACTware™ compatible
  • For challenging applications such as vapor, fume, mixing blades, and light foam
  • 5 years warranty

Applications

  • Level measurement of liquids and slurries
  • Agriculture
  • Construction materials
  • Chemical industry
  • Food and beverage
  • Oil industry
  • Paper mill
  • Water / wastewater industry
Get Adobe Acrobat Reader For More information please take a look at the Full: Bulletin
Technical Data
Supply voltage 2-wire: 12…36 V DC
4-wire: 85…255 V AC, 20…28 V AC/DC
Ambient temperature –22…+158 °F
Process temperature –22…+212 °F
Process pressure (absolute) 7.5…43.5 psig
Measurement range 0.65…82 ft
Output 4…20 mA, HART®, relay
Process connection 1½", 2" BSP / NPT, flange
Ingress protection IP67
Approvals ATEX, INMETRO, UKCA Ex

We've seen your application. Call Us for application Assistance

(901) 452-4516
