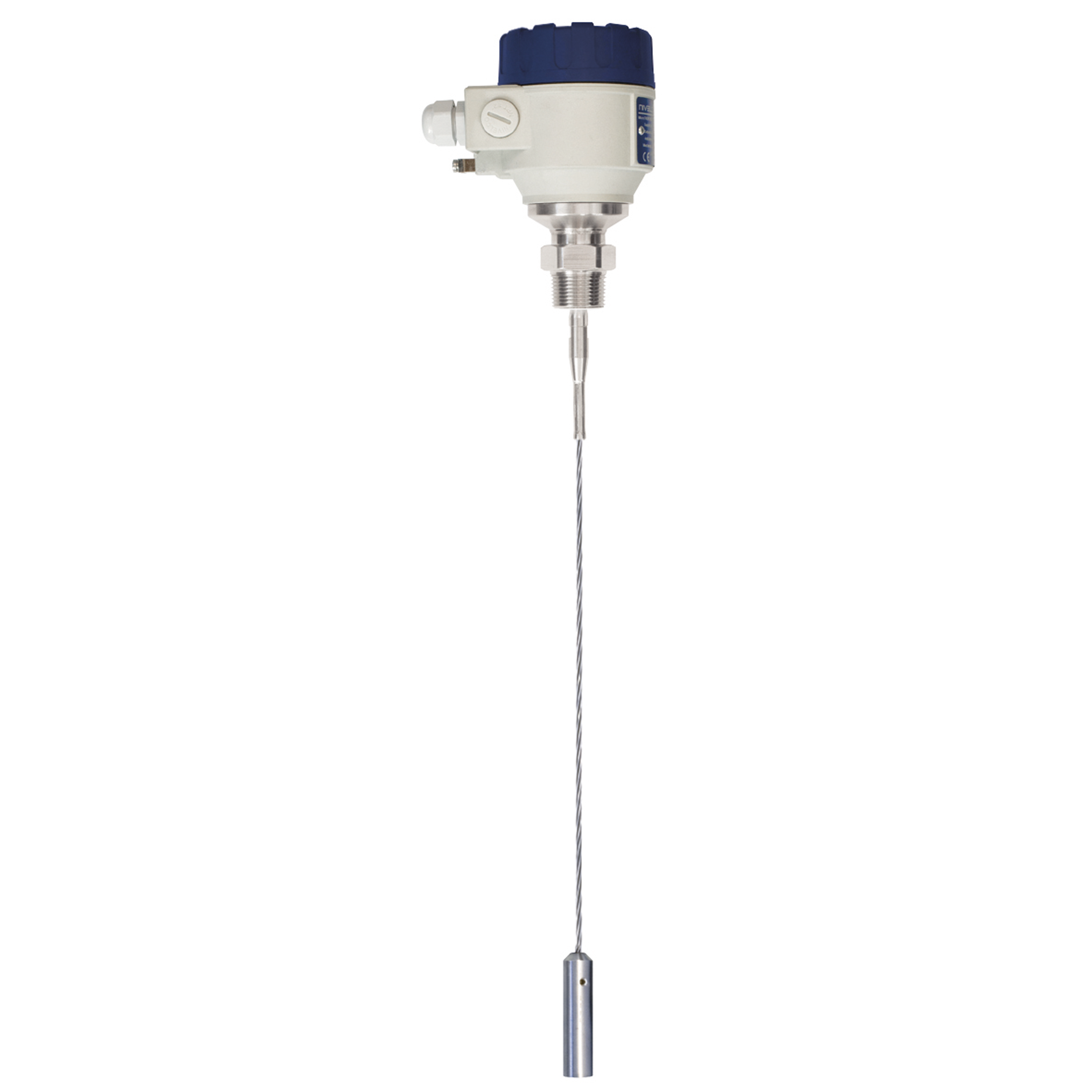

MicroTREK H-Series Guided Wave Radar
NIVELCO MicroTREK
H-Series Guided Wave Radar
|
 |
Nivelco Level Transmitter, Guided Wave Radar, MicroTrek H-Series
Available with 5-year warranty, programming via HART® protocol, 3 to 100' sensing distance, high
temperature units up to 392°F.
|
|
Product Properties
- 2-wire compact transmitter
- ±0.4" accuracy
- High pressure, high-temperature range
- Wide range of probes: rod, segmented rod, flexible, coaxial, or segmented coaxial probe versions
- Extremely small deadband
- Plug-in graphic display module
- Explosion-proof variants
- Plastic, aluminum or stainless steel housing
- Up to 100 ft measuring range
- Maximum tracking speed: 6561 ft/hour; 22 in/s
- Advanced threshold management
- False echo exclusion
- Probe Correction Table (SCT)
- Interface measurement
- Dual current output for interface measurement (optional)
- PACTware™ compatible
|
Applications
- Level, distance or volume measurement of liquids, powders, granules with εr > 1.4
- Media with turbulent surface, dense dust, vapor or pressurized gas layers above the product surface
- For all tank shapes, for narrow vessels
- Heavy industrial applications
- Agriculture
- Construction materials
- Chemical industry
- Food and beverage
- Power plants
- Oil industry
- Water/wastewater industry
|
For More information please take a look at the Full:
Bulletin
|
| Supply voltage |
12…36 V DC |
| Ambient temperature |
–22…+149 °F |
| Process temperature |
–22…+392 °F |
| Process pressure |
–14.5…580 psig |
| Measurement range |
0…100 ft |
| Output |
4…20 mA, HART®, SPDT relay |
| Process connection |
1", 1½" BSP / NPT, TriClamp, flanges or sanitary |
| Ingress protection |
IP67 |
| Approvals |
ATEX, IEC Ex, INMETRO, UKCA Ex |
