Skorpion Air Heater W/ built in blower and controls

The SKORPION™ Heat Gun represents the perfect combination of power, size, reliability, and control in Air Heating technology. Featuring a built-in PID temperature control with LED display, just set the control to any temperature up to 1400°F (760°C) and SKORPION™ regulates it to + 2°F (1°C). Digital readouts of the set point and the actual temperature let you dry, shrink, seal, and melt with complete accuracy, control, and confidence. SKORPION™’s metal blower, housing and OSRAM Sylvania’s unique Serpentine heating element make it a robust heat gun that is easy to use, install, and maintain. An adjustable air damper provides flow control. SKORPION™ has the same foot print, mounting, and inter-connect dimensions of popular, European manufactured heat guns making replacement simple and worry free. SKORPION™ Heat Guns are ready for Quick shipment and features a 2 year warranty, including heating element.
Skorpion Blower Heaters

Features

  • Air temperatures Controllable to 1400°F (760°C)
  • Power Rating 1.5 KW - 4.5 KW
  • Complete heater including blower and control unit that is ready to plug in and use
  • Convenient digital display shows current operating temperature
  • Built in over-temperature protection and a two-year limited warranty
  • Models also available without blower for use with customer supplied air source
  • Maximum inlet temperature 200°F (93°C)
  • Recommended minimum airflow 2 SCFM
  • RoHS compliant
  • CE

Heater Selection

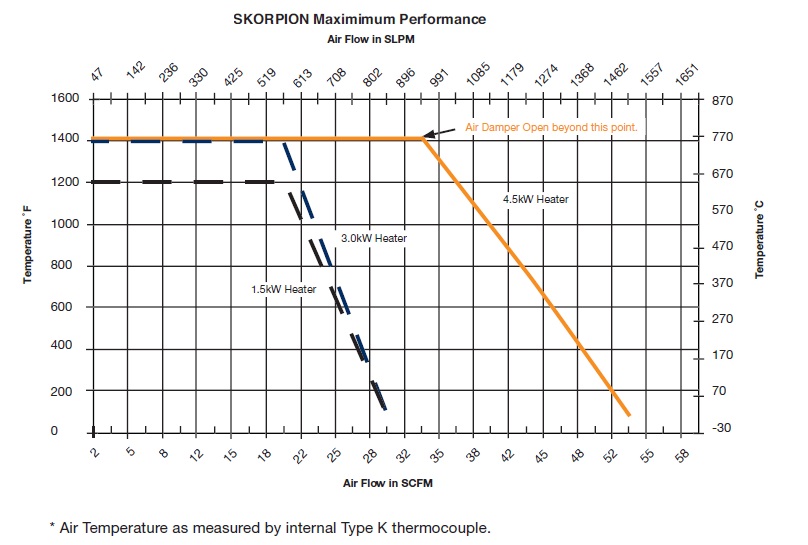

To determine the proper size heater, plot a point, which defines your required air temperature and flow. The nearest curve to the right and above this point represents the proper heater selection. Then Click here to determine your require Wattage. and check out the Specifications and Accessories Page for complete part numbers, dimensions, styles, and voltages available.

All temperature measurements were created using an exposed junction, 1/16" diameter "K" thermocouple.

Series I, II, III Heaters


New On Line Ordering


Catalog# Watts Volts Amps Height "A" Height "B" Nozzel Dia Price $ Add To Cart
Skorpion W/ Blower
075615 1.5kW 120 - 1 12.5A 9.18" 13.58" 2.44" $1050.00
075616 3.0kW 230 - 1 12.5A 9.18" 13.58" 2.44" $1050.00
076008 4.5kW 230 - 1 20.0A 10.84" 14.44" 2.44" $1090.00
Skorpion without Blower
075869 1.5kW 120 - 1 12.5A NA NA 2.44" $1010.00
075835 3.0kW 230 - 1 12.5A NA NA 2.44" $1010.00
076029 4.5kW 230 - 1 20.0A NA NA 2.44" $1059.00
Accessories
075744 High Flow Nozzle (1") diameter opening – slip-on mount with set screw $126.00
075745 Standard flare 150mm x 12mm (6" x 0.5") opening – slip-on mount with set screw $210.00
075746 Wide flare 300mm x 4mm (12 x 0.16 inches) opening – slip-on mount with set screw $370.00
Click Here For: Specifications and Accessories
Click Here For: Series I, II, III Heaters Operating Manual (PDF)

We've seen your application. Call Us for application Assistance

(901) 452-4516
