Silicone Rubber Tank Heaters




VH Series

VFS Series
  • FM approved for Hazardous Locations
    Class 1 Div 2 Groups A, B, C & D
    • Low Watt Density
    • Won't Damage or Burn Product)
    • No Tank Penatration!
    • Easily Straped to Exterior of Tank

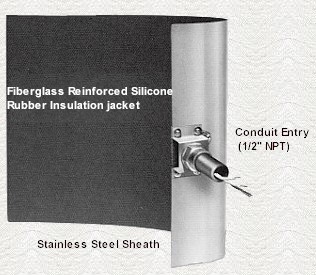

    • Conduit for Penatration of Insulation!
    • Easy wiring and Hook up
    • Specifications!

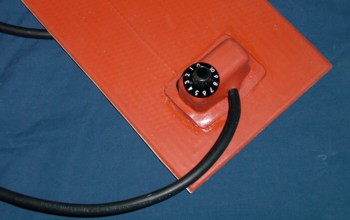

Silicone Rubber Mat Heaters are the perfect solution for retro-fitting a Tank! We Can Heat the Tank with out penatrating the Skin.
      Typically these heaters are used for Tank Maintainence only. However, depending on the application Silicone Mats can be used for temperature Raising Applications. The Watt Densities low and allow Mats to be used on a variaty of Liquids and types of tank materials. Although the heaters can handle up to 428 ° F, we typically only use on tank temperatures up to 175° F.

      Mats include a 1/2
  • Voltages available (120, 208, 240, 277 & 480)
  • 2 Sizes
  • Explosion Proof Class 1 Div 2 Mats
  • Great Heater for lots of Applications. All it takes is simple mounting and electrical hook-up.
    Catalog #
    Length
    (In Inches)
    Width Volts Watts Ship Wt. lbs Price Add to Cart
    VH1-500 12" 22"
    120 VAC
    500 watts 8 lbs $520.00
    VH1-1000 18" 28"
    120 VAC
    1000 watts 12 lbs $721.00
    VH2-500 12" 22"
    240/208 VAC
    500/375 watts 8 lbs $520.00
    VH2-1000 18" 28"
    240/208 VAC
    1000/750 watts 12 lbs $721.00
    VH2-2000 24" 42"
    240/208 VAC
    2000/1500 watts 15 lbs $1033.00

    Accessories

    Back to top

    Catalog # Description Volts Wt. Price Add To Cart
    STD-XXA235A 30 Amp Temperature Control Panel
      Includes:
    • Digital Temperature Controller
    • Weather Proof enclosure (Nema 4X)
    • Contactor
    • Fuse Protection
    • Works up to 2 Mats or 6000 watts
    18 $775.00
    PTC-3072JC Type J Type Thermocouple
    • 72" Armor Leads
    • Adjustable Bayonet
    • Bayonet Adaptor Included
    N/A
    2 $36.00
