SRL Series

Silicone Rubber Tank Heaters



SR Series

VFS Series
  • Low Watt Density
  • Won't Damage or Burn Product)
  • No Tank Penatration!
  • PSA Adhesive Backing
  • 10' Weather Proof Cord (no plug)
  • Easy wiring and Hook up

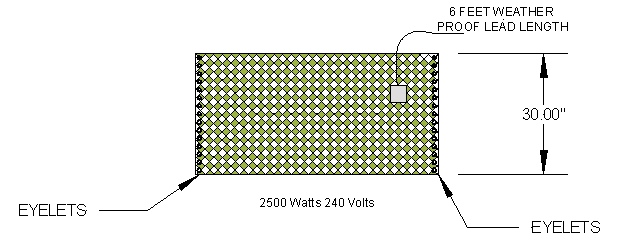

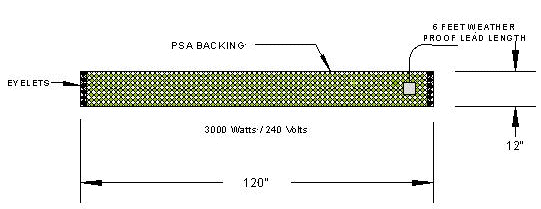

Silicone Rubber Mat Heaters are the perfect solution for retro-fitting a Tank! We Can Heat the Tank with out penatrating the Skin.
      Typically these heaters are used for Tank Temperatures Maintainence only. The Watt Densities are kept low to allow Mats to be used on a variety of Liquids and types of tanks. Although the heaters and Adhesive can handle up to 450 ° F, we typically only recommend tank temperatures up to 250° F.

      Mats can include many mounting options. We offer re-enforced Eyelets, PSA Adhesive (Peel and Stick) backing for setup.
  • Voltages available (120, 208, 240, 277 & 480)
  • 2 Sizes
  • Explosion Proof Class 1 Div 2 Mats available ( Special Order)
  • Great Heater for lots of Applications. All it takes is simple mounting and electrical hook-up.
    MG Series

    There has Been a Price increase on these items please call for pricing!!

    Catalog #
    Length
    (In Inches)
    Width Volts Watts Ship Wt. lbs Price Add to Cart
    VFS-6000A 168" 12"
    6000 watts 32 lbs $693.00
    VFS-4500A 120" 12"
    4500 watts 32 lbs $560.00
    VFS-3000B 120" 12"
    3000 watts 32 lbs $560.00
    VFS-3000A 96" 12"
    3000 watts 28 lbs $520.00
    VFS-2500C 96" 12"
    3000 watts 28 lbs $560.00
    HFS-6000B 96" 30"
    6000 watts 45 lbs $643.00
    HFS-4000C 72" 30"
    4000 watts 36 lbs $545.00
    HFS-4500B 60" 30"
    4500 watts 38 lbs $568.00
    * Adhesive Only ( No mounting Eyelets )

    Accessories

    Back to top

    Catalog # Description Volts Wt. Price Add To Cart
    STD-XXA235A 30 Amp Temperature Control Panel
      Includes:
    • Digital Temperature Controller
    • Weather Proof enclosure (Nema 4X)
    • Contactor
    • Fuse Protection
    • Works up to 2 Mats or 6000 watts
    18 $775.00
    PTC-3072JC Type J Type Thermocouple
    • 72" Armor Leads
    • Adjustable Bayonet
    • Bayonet Adaptor Included
    N/A
    2 $36.00
