Series I, II, III Heaters

"Series" Heaters are compact heaters designed to provide the maximum temperature rise in the smallest package. Applied properly they will provide a life cycle of 5000 hours or more. Its important to realize that these heaters need good clean air flow and require a cool down cycle prior to shut-down of airflow.
Series I, II, III Heaters

Features

  • Air temperatures to 1600°F (871°C)
  • Quartz outer tube housing.
  • Nozzled (Style B) or open-ended (Style A) design
  • High-temperature silicone rubber Rear Adapter/Terminal Assembly
  • Quick replacement with quick connect spade terminals and air inlet.
  • Maximum air pressure 7 psi
  • Maximum inlet temperature 80°F (27°C)

See Datasheet for More Information!

Heater Selection

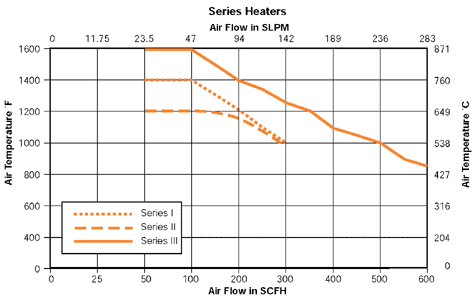

To determine the proper size heater, plot a point, which defines your required air temperature and flow. The nearest curve to the right and above this point represents the proper heater selection. Then Click here to determine your require Wattage. and check out the definitions and theory Page.

All temperature measurements were created using an exposed junction, 1/16" diameter "K" thermocouple.

Series I, II, III Heaters


New On Line Ordering


Catalog# Watts Max Volts Watts@120VAC Tube Style Length Tube Dia Nozzel Dia Price $ Add To Cart
SERIES I
010226 1050 180 466 "A" 6.88" .41" .41" $146.00
014372 1000 130 850 "A" 7.75" .41" .41" $162.00
014682 680 145 465 "B" 7.78" .41" .07" $178.00
014683 650 105 na "B" 8.75" .41" .07" $194.00
SERIES II
016501 1125 130 959 "A" 3.88" .41" .41" $130.00
016503 850 80 na "A" 3.88" .41" .41" $162.00
016502 600 95 na "B" 4.88" .41" .07" $130.00
016504 650 70 na "B" 4.88" .41" .07" $162.00
SERIES III
017558 2050 160 1150 "A" 6.88" .59" .59" $211.00
017575 1450 135 1145 "B" 7.88" .59" .12" $243.00
Controls
057081 Open Loop SCR Controller w/Manual Pot 0-100 Percent, 25 amp 120-277 VAC $185.00
MNS-15A20-KX Closed Loop Digital Temperature Controll Panel with Thermocouple, 20 amps 120 volts $875.00
Click Here For: Specifications and Accessories
Click Here For: Series I, II, III Heaters Operating Manual (PDF)

We've seen your application. Call Us for application Assistance

(901) 452-4516
