Tank Heating Specialist!
Asphalt Emmulsions Oils Bio-Desiel Vegitable Oil Fuel Oil		Caustic Acids Etches Hazardous Areas Chemical Water and Foods Grade
Fill in Our Tank Heating Questionnaire and Give Us a Call! 901-452-4516
We offer a wide variety of designs for heating Oils, caustics, ashpalts, water and almost any corrosive liquid by direct immersion. Standard designes include copper, steel, stainless, Incoloy and Teflon. Custom designed heaters in 10 different sheath materials, liquidproof or explosion-resistant terminal boxes, hermetic terminal end seals, high temperature construction and built-in controls. UL Listed and CSA Approved designs are available.

Immersion Heaters
Screw Plug Immersion Heaters	Metal Sheat Heater for thousands of Applications Various Watt densites Thermostats and Sensors available Indoor - Outdoor Heavy Duty Elements Easy Hook Up
Pipe Flanged Heaters	Heavy Duty Liquid Heating Applications 150 and 300 Pound Flanges Available OutDoor - Indoor - Hazardous Locations! Built-in Thermostats / High Limits Many Sheath Material and Watt densitys available!
Over-the-Side Heaters	Perfect for Open top Applications! Tough Tubular Element Design Special Designs for Corrrosive Materials Optional thermostats Various Riser Heights Indoor - Outdoor Multible sheath Materaial and watt densities!

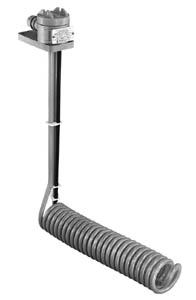

Flexable Riser Heaters	Perfect for Retro-fit applications! Drop In Tank Design Adjustable riser lenght Many Corrosioin Resistant Sheath Materials Multible watt densities available!
Quartz Heaters	Fits into the Kickboard below your Cabinets Blends In to your baseboard Quiet Fan Operation Built-in Thermostat Great Heat for Kitchens or Bathrooms
Teflon Heaters	Heat your Most Corrosive liquids Over The Side Screw In Immersion Drop In Various Sizes and Shaps Quick Ships available
Storage Tank Heaters assemblies	Fits into the Kickboard below your Cabinets Blends In to your baseboard Quiet Fan Operation Built-in Thermostat Great Heat for Kitchens or Bathrooms
Open Coil Pipe Insert Heaters	Pipe-Insert Heaters Provide the Very Low Watt density Low watt density i.e. Low sheath temperature prevents materals from burning or charring when in contact with the heater. Heats tough to heat materials such as Asphalt, Oils, Resins. Low watt density Elements are easily Replaced Excellent Temperature Control Oils, Ashpalts, Corrosives
Circuilation Heaters	The Series 355 (50 W/in2) INDEECO circulation heaters are designed for heating water. These high quality Water Heaters include the following standard features : Copper / Steel or Stainless Steel sheathed .475" diameter heating elements Insulated steel vessel with a galvanized jacket NEMA terminal enclosure Specify Type Built-on thermostat, or High limit Choice of mounting brackets or mounting pads Flange heaters have 150 lb. steel flanges which meet ANSI B16.5 standards Rated 160 psi at 250°F
Steam Coils	Engineered Steam Systems Quick Heat up. Heat exchangers and heating/cooling coils are designed for the demands of corrosive chemical heating. A wide variety of standard and custom configurations are available. Materials of construction include: fluoropolymer, titanium, 316 stainless steel, plain steel, and several exotic metals such as Zirconium. Most of our heat exchangers are open tank designs, however, we also have some inline designs such as stainless steel spiral plate units. Excellent engineering and design assistance is available upon request.
Exterior Tank Heaters

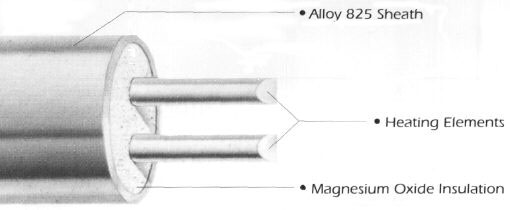

Mineral Insulated Heater Cable	M.I. Cable can be mounted on the out side of the Tank. This system is usually only used for Maintaining the tank temperature. High temperature applications Long Life No contact with the Fluid.
Constant Wattage Cable	Constant Wattage Cable like M.I. can be mounted on the out side of the Tank. This system also is only used for Maintaining the tank temperature. Lower temperature applications Easy to Install No contact with the Fluid.
Self Regulating Heat Cable	Constant Wattage Cable like M.I. can be mounted on the out side of the Tank. This system also is only used for Maintaining the tank temperature. Lower temperature applications Easy to Install No contact with the Fluid.
Insulated Pipe Heating	Full coverage Pipe Heating with built in Freeze Protection Thermostat This system normally used for Maintaining the Pipe Temperatures above Freezing Freezer Protection applications Supper Simple to Install Simple control Higer Temperature Ranges available

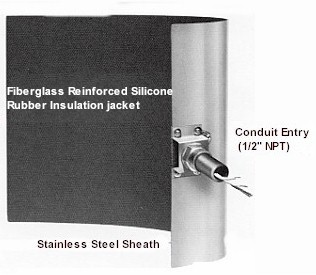

Silicone Rubber Heat Mats	Silicone Heaters are Mounted Outside the tank at the lowest point available. This system is usually only used for Maintaining the tank temperature. But for low temperature appications up to 250 Degrees F we can use these heaters for Raising the Fluid Temperature. Lower temperature applications Very Easy to Install Just Peel and Stick (adhesive Backing No contact with the Fluid.
Hazardous Duty Heat Mats	Class 1 Div 2 Heat Mats are Mounted Outside the tank at the lowest point available. Perfect for Hazardous locations for Temperature maintanance applications Low temperature appications up to 400 Degrees F Lower temperature applications Very Easy to Install Heavy Metal Backing No contact with the Fluid. WeatherProof
Drum and Tote Heaters	Insulated Drum and Tank Heaters Up to 200º F Built-in Thermostat Weatherproof construction High and Low Temperature solutions! Solve your heat loss Problems!
Controls and Control Systems
	Temperature Control Panels We manufacture a complete range of temperature control panels designed for Steam & Electric Heat pre-wired and on our shelf. Our Model# STD-12A103A is Designed specifically for Steam Service and Includes: Digital Temperature Controls High Temp Alarms (Safety Valve Control) Fused Output Asco Steam Rated Solinoid Valves On the Shelf For Quick Delivery Mounted and Tagged to a clearly labeled terminal strip for easy installation.
TTDTemperature Controllers	Digital Temperature Controller Relacable Sensor Fused 15 amp load Cord and Plug Available in 3 Temperature Ranges Quick Ship
