Air Heaters

E Shop : Process Heating : SureHeat Jet Controller

Osram Sylvania
"JET" Controller

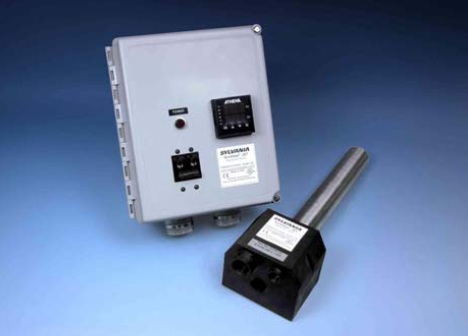

SureHeat Jet Temperature Control System

Control up to 1400º F.

Click Here For:
Wattage Calculator!

Closed-loop temperature control system for SureHeat® JET heaters.!
  • NEMA 4X Enclosure
  • Electrical Rating up to 35 Amps 240 V 1 Phase
  • Precise control of SureHeat® JET to ±1°
  • Factory programmed for optimum SYLVANIA heater life.
  • Includes: 1/16 DIN Digital Temp Controller (for S2) Inlet limit controller (for S1)
  • “Zero-cross” SSR Power Controller
  • Door-mounted circuit breaker
  • Power-ON indicator light.
  • UL / CE approval
New Price


Catalog# Watts Volts Inlet Size Outlet Size Weight Price $ Add To Cart
F074718 3000 240 V 1 phase 1" NPT 3/4" NPT 5 $770.00
F074719 8000 240 V 1 phase 1" NPT 3/4" NPT 5 $770.00
F074722 Sure Heat Controller w/ Digital indication and Duel input! 240 V 1 phase 15 $1850.00
Click Here For: Heater Manual
Click Here For: Controller Manual
Click Here For: Heater Literature
SureHeat Jet Heater and Control package®
The Sure Heat System is a Unique design that incorporates both percise digital temperature control with the ablity to heat large volumns of are to temperature up to 1400º F

The Heater (JET) uses open coil high temperature serpentine Heater elements manufactured with high quality Nichrome resistance wire. This element is protected from high temperatures by a intergrated type K thermocouple sensor attached to the inlet element. The Exit temperature is monitored and controlled by a seperate thermocouple sensor located in the exit air stream. The heater case is manufactured in Stainless Steel and included a Composite junction box with a clearly labeled terminal strip for easy field wiring.
The SureHeat controller the heater uses a high speed Digital temperature controller and Solid state relay for super fast accurate control.

Heater Selection

To determine the proper size heater, plot a point on the Datasheet Chart, which defines your required air temperature and flow. The nearest curve to the right and above this point represents the proper heater selection. Then Click here to determine your require Wattage. and check out the definitions and theory Page.



Call us for Quantity Discounts.




We've seen your application. Call Us for application Assistance

(901) 452-4516
