Thermalinc.com Home : Comfort Heating : Garage / Shop Heaters

Garage / Shop Heaters         $285.00 US         In stock
A Heater Designed for Your Garage or Shop!
  • Perfect for a TWO Car Garage with 12' Ceilings.
    • Indeeco ULI Unit Heater

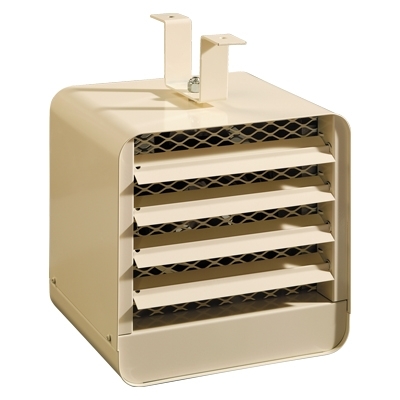

    Click Here for Expanded View (ULI)
    		We have had some shipping problems with this heater.
    Please try our AUH-524TA instead!!
      Includes Mounting Bracket
      • Heavy Duty Elements Finned Tubular Elements For Cool Elements and Long Life!
      • Built-in Thermostat. Ready to run without running external wire. Self contained!
      • Built-in Terminal Strip Wireing is easy just run your power wire to the terminal strip and you are through.
      We now have Stock
      We Ship Same DAY!
      We are out of stock!!
      Deliveries are Running 2 to 3 weeks.
    ULI Electric Unit Heater Specifications
    Buletin
    Instruction Sheet
    MODEL NUMBER
    ADD TO CART    		 VOLTS WATTS BTU/hr. PHASE FAN MOTOR WATTS FAN MOTOR RPM AIR VOLUME CFM THROW MIN. MTG. HT. HEATER AMPS SHIP WT. lbs
    ULI-5000VA
    $285.00
    208

    240
    3,750

    5,000
    12,795

    17,065
    1
    6
    1450
    300
    16'
    6'
    18.02

    20.9
    25

    • Easy to Install and Service By removing one screw, the bottom control box swings down on hinges for complete access to controls and wiring to permit full access for installation, and for cleaning and servicing without dismounting the shop heater. Isolated terminals allow for Cool 75° C hook-up wire.
    • Housing Heavy 20 gauge steel Cabinet finish shall be an almond epoxy/polyester powder paint Side panel removeable to gain full access to element and Garage Heater fan area.
    • Adjustable louvers provide desireable easy air flow adjustments.
    • Wiring diagram attached to the inside of the control box cover.
    • Heater Fan Motor Totally enclosued, impedance protected, unit bearing design with high starting and running torques. Heater Fan motor and controls operate directly off of the line voltage of 208 and 240 volt heaters. (on 277 and 480 volt heaters a transformer is built into the unit to provide proper fan motor and control operation.)
    • Heating Elements Non-glowing design using a bank of tubular captured by Steel plate fins provide uniform heat and extremely long life.
    • Thermal Cutout is built into the system to automatically shut of heater in event of overheating due to any cause.

    Thermostat is built-in to heater and
    adjustable from 50-109 ºF
