CB Series Rail Mount Mini Circuit Breakers
1, 2 and 3 Pole,
1 amps to 63 Amps

FEATURES & BENEFITS:
  • 10 kA per IE 60898
  • 480 VAC Max

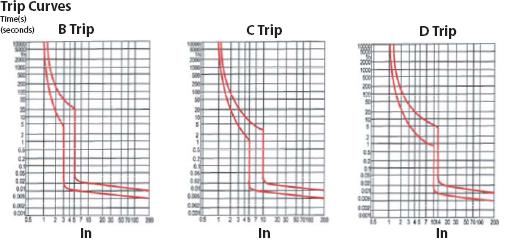

  • B, C and D Trip Curves
  • Rail Mount
  • Low Cost
  • Small Size

B - Trip Curve Resistive Loads such as:
  • Electric Heaters
  • Water Heaters
  • Stoves
    C - Trip Curve Usual Loads Such as:
  • Lighting
  • Socket Outlets
  • Small Motors
    D - Trip Curve High Inrush Loads Such as:
  • Transformers
  • Motors
  • Quartz heaters


    • 1, 2, & 3 POLE Circuit Breakers - TYPE CB
    Up to 63 amps
    Model# Amp. Rating Trip Curve Poles Price Buy
    AC Series Circuit Breakers
    CB-XXA1BX
    		1 $10.00
    CB-XXA2BX
    		2 $16.32
    CB-XXA3BX
    		3 $27.84
    DC Series Circuit Breakers
    CB-XXDXA1
    		1 $12.00
    CB-DXXA2
    		1 $21.00
    ** C Curve Breakers are Usually in Stock!

    We've seen your application. Call Us for application Assistance

    (901) 452-4516
