MDI Solid State Relays

Single Pole High Speed Power Control
This product is perfect for Tight PID control loops. Air heater, Sensitive process control, and Temperature control loops
With this 1-pole switch - ON occurs at the voltage zero cross and switch OFF occurs at the current zero cross. Designe for resistive and slightly inductive loads, the SSR is operates for Milions of cycles.

Specifications are at a surrounding temperature of 25°C unless otherwise specified.
  • 1-pole AC switching solid state Relays
  • UL, cUL Listing
  • DIN Rail or panel mount
  • RoHS compliant
  • Ratings:
    • Rated operational voltage:
      • 42-660 VAC -15% / +10% on max
      • Universal "A" Control input 24-48 VDC
          or 24 to 275 VAC
      • Low voltage DC "D" control 4-32 VDC
    • 6,600 A2s for l2t
    • Operating temperature:
      • -40°C to +80°C (-40°F to +176°F)
    • Weight: Approx. 850g
 Solid State Relay
SS20AU (1 Pole 20 AMP)

1 Pole Solid State Relays
 Product Image   Model    Amps / Volts    Control Voltage    Price     Wgt    Buy Now

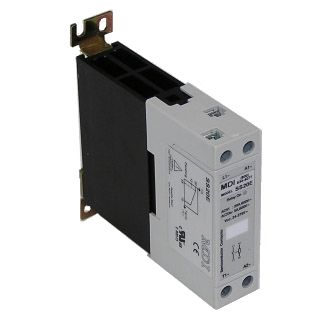

 Solid State Relay SS20AU   SS20AU   20 amp 42 to 660 VAC Power    24-275 VAC    $55.50   1#
 Solid State Relay SS20DU   SS20DU    20 amp 42 to 660 VAC Power    4-32 VDC    $55.50     1#
 Solid State Relay SS30AU   SS30AU    30 amp 42 to 660 VAC Power    24-275 VAC    $76.00   1#
 Solid State Relay SS30DU   SS30DU   30 amp 42 to 660 VAC Power    4-32 VDC    $76.00   1#

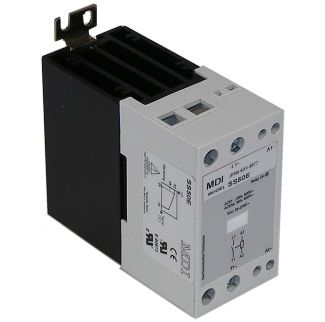

 Solid State Relay SS50AU   SS50AU   50 amp 42 to 660 VAC Power    24-275 VAC    $88.00   2#
 Solid State Relay SS50DU    SS50DU   50 amp 42 to 660 VAC Power    4-32 VDC    $88.00   2#

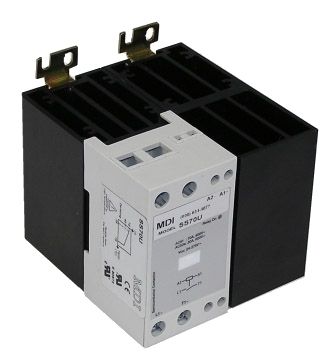

 Solid State Relay SS70AU    SS70AU    70 amp 42 to 660 VAC Power    24-275 VAC    $119.00   2 #
 Solid State Relay SS70DU   SS70DU   70 amp 42 to 660 VAC Power    4-32 VDC    $119.00    2#
